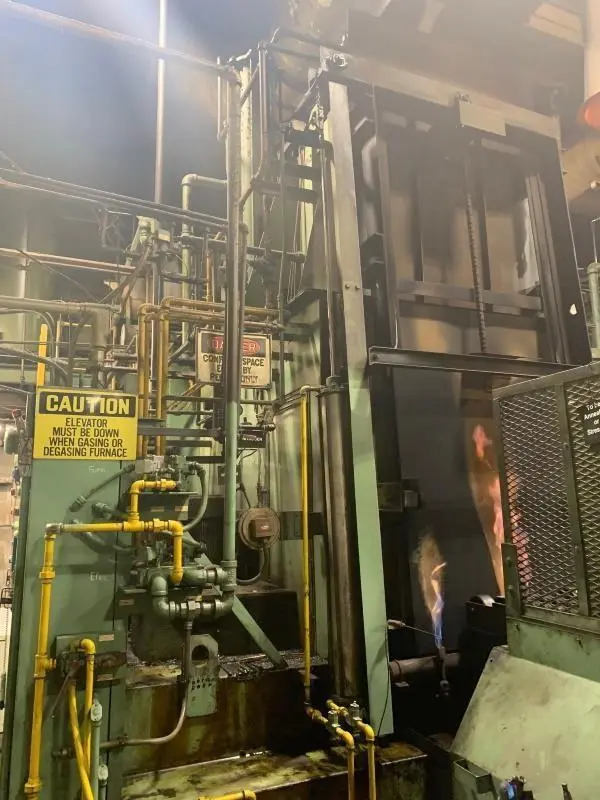

Surface Combustion IQ Furnace with Top Cool (36"W x 72"D x 36"H, 1750°F, gas)

Manufacture: Surface Combustion
Type: Super 36-72-36 Allcase IQ Furnace with top cool
Top-Cool: Yes, with Endo gas
Working Dimensions: 36” wide x 72” deep x 36” high
Overall Dim’s: 11’3” wide x 13’9” deep x 11’5” high
Quench & Vestibule: 14’9” wide x 11’2” deep x 12’9” high
Atmosphere: Natural gas, ammonia, air, endo for furnace & top cool, natural gas, nitrogen for furnace purge
Manufactured: Built and installed in 1986
Max-Fuel-Demand: Natural Gas
Max-Fuel: 1,100,000 BTU’s
Fuel-BTU: 1,000 cubic foot per unit
Fuel-Pressure: 8 PSI
Heating-Chamber: (4) sets of U-tubes
Max-Temp: 1750°F
Power: 460V, 3-Phase, 60 Hz, 90 KW
Quench Tank: 5,000-gallon capacity
Controls: Casemate
