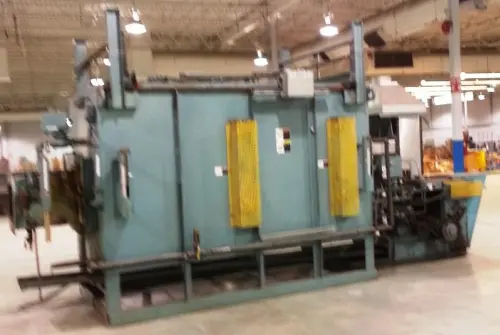

Seco Warwick Mesh Belt Brazing Furnace (18”W x 12”H x 10' heated, 2100ºF, elect, 120kw)

Manufacturer: Seco-Warwick
Type: Mesh Belt Brazing Furnace
Model Number: MBC-18812
Serial Number: 158966
Max-Temp: 2100°F
Furnace Dim's (approx.):
(1) Load Table: 4’ long
(2) Preheat Section: 4’ long
(3) Heating Section: 10’ long
(4) Slow Cool Section: 2’ long
(5) Water Cooling Section: 20’ long
(6) Unload Table: 4’ long
(7) Overall Length: 44’ long
(8) Load Height: 42” high
(9) Clear Height: 12” high
(10) Belt Width: 18” wide
Max Net Production: 420 pounds/hour gross
Electric Heat: 2 Zone, 60 KW each, 120 KW total
Atmosphere: Exothermic gas 2100 CFH

Controls in free-standing NEMA 12 – double door enclosure
(1) Nematron PLC with display monitor
(2) Honeywell UDC3000 high-limit controllers
(3) Equipment mounted E-Stops (1) at each end
(4) Spang transformers – free-standing enclosure (60 KVA, 480V primary)
