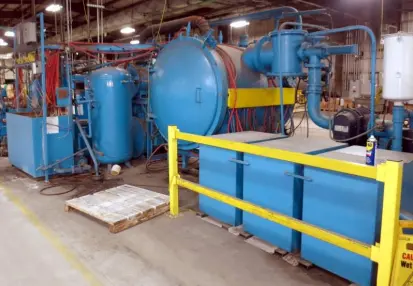

Abar Vacuum Furnace 2-Bar (24"W x 60"D x 24"H, 2450ºF, elect, 150kw)

Manufacturer: Abar
Type: Horizontal 2Bar Vacuum Furnace
Model/Year: HR 34 (2 Bar, 15 psi), BM555, 1980
Load-Area: 24” wide x 60” deep x 24” high
Overall-Dim's: 185” wide x 112” high x 295” deep
Approx-Weight: 12,000 pounds
Voltage: 480V / 3-Phase / 60Hz
Max-Temp: 2250°F
Capacity: 2,000 pounds
Atmosphere: Nitrogen or Argon
Cooling: 4,400 CFM, Spencer Turbo Blower 50HP
Heating-Power-Input: 150 KW, VRT – 150 KW
Thermocouples: Type S
Diffusion-Pump: 16” Port and Valve Body (no pump)
Mechanical-Pump: Stokes 412-11, 10HP
Blower: Roots 615, 10H
Elements-Shielding: Molybdenum/ Graphite
General: Loader included, circular hot zone

Controls:
(1) Honeywell 9000 control system
(2) Honeywell DPR 3000 chart recorder
(3) Honeywell UDC over temp
