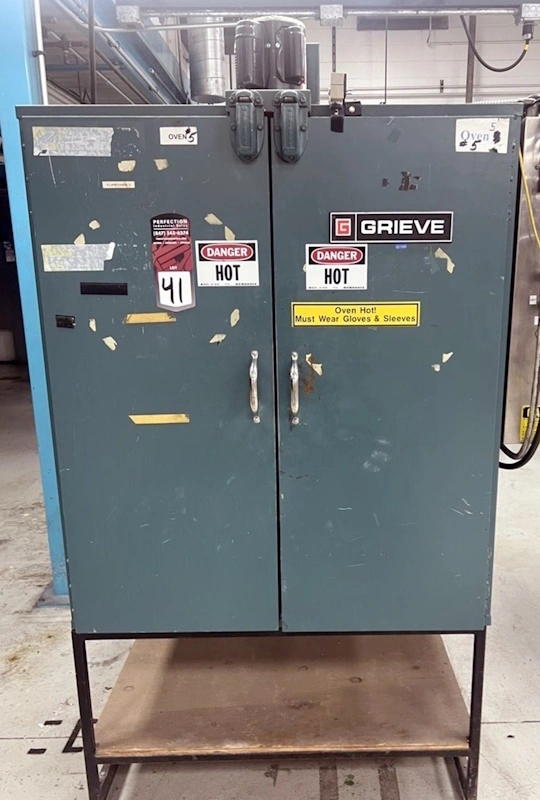

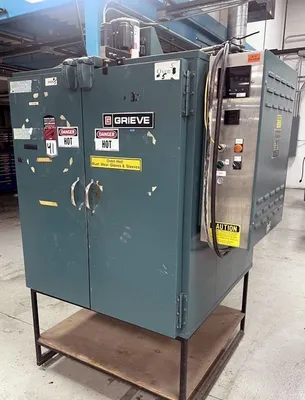

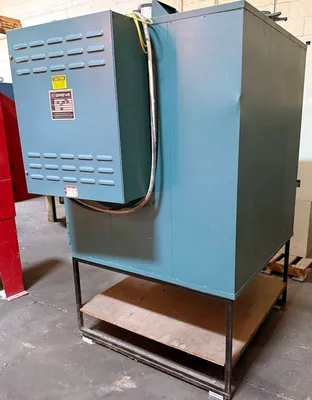

U-3844 Grieve Cabinet Oven (36"W x 36"D x 36"H, 400ºF, elect)

Manufacturer: Grieve Oven
Type: Electric Cabinet Oven

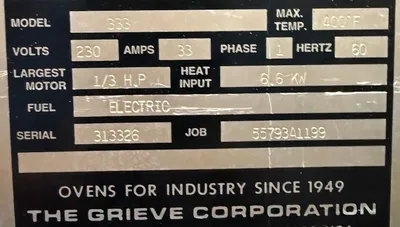

Serial No./Model: 313326 / 333
Max Temperature: 400ºF
Power: 6.6 KW
Air Flow: Forced Convection, Front to Back

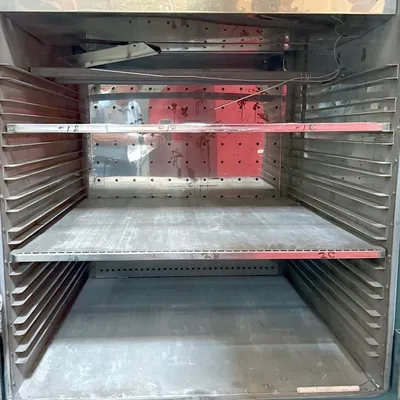

Workable Dim’s: 36” wide x 36” deep x 36” high
Rated: 230 V, Single Phase, 60 Cycle, 33 Amps
Overall Size: 40” wide x 43” long x 47” high
Ship Weight: 750 pounds

Controls:
Digital indicating temperature controller
Motor control push buttons & on-off heat switch
LED pilot lights
5 kA short circuit current rating (SCCR)

General:
Heating elements located in heat chamber to prevent radiant heating
High pressure carbon steel recirculating blower
Heavy duty doors with explosion venting latches
Silicone rubber door gasket
