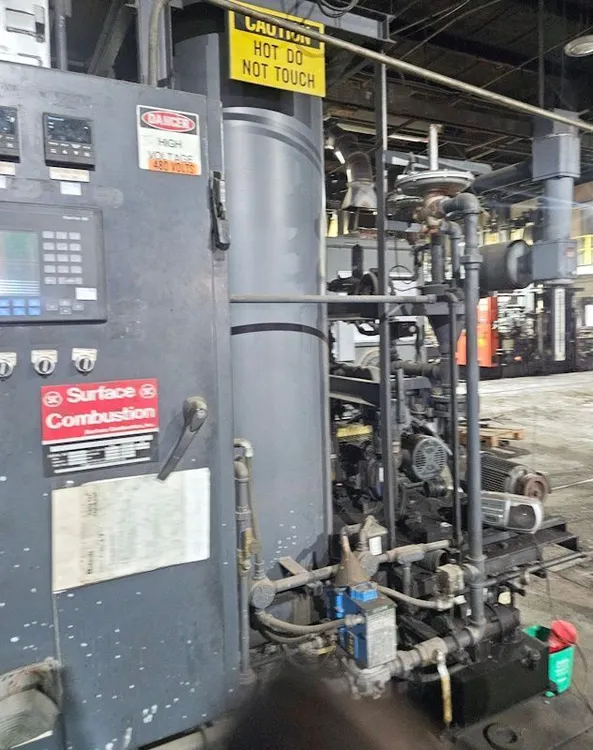

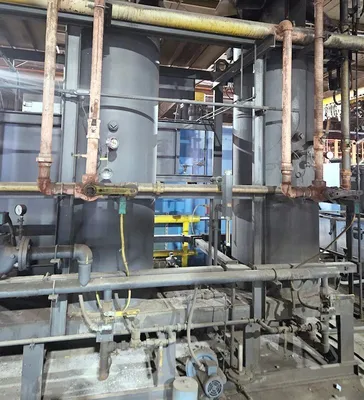

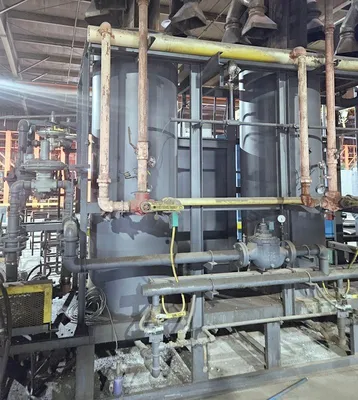

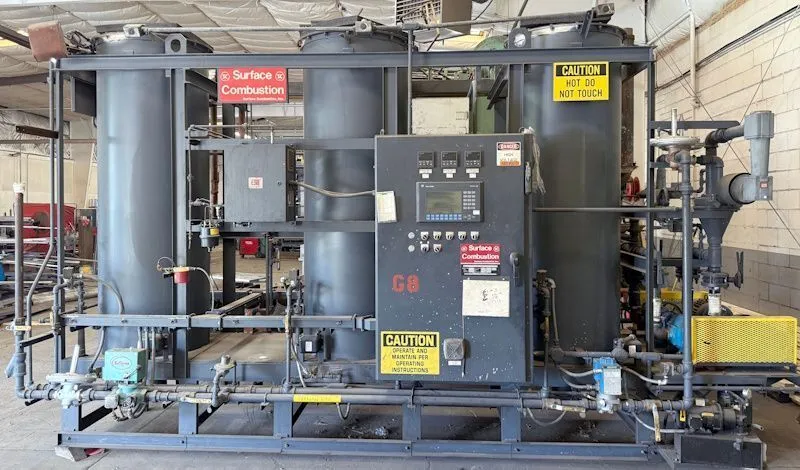

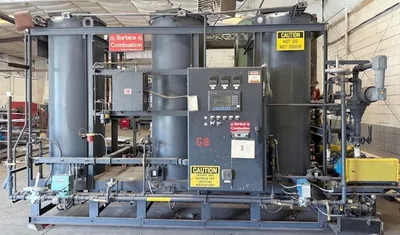

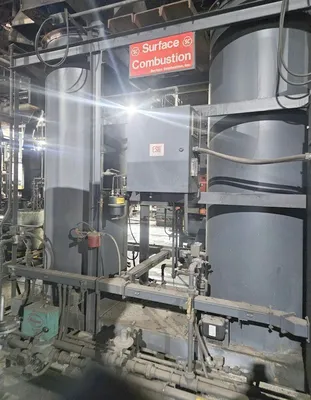

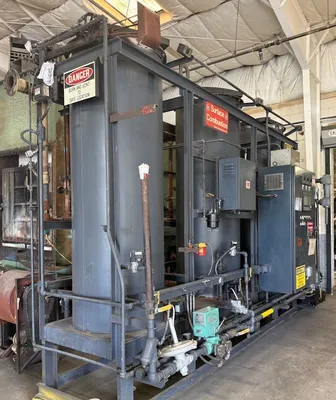

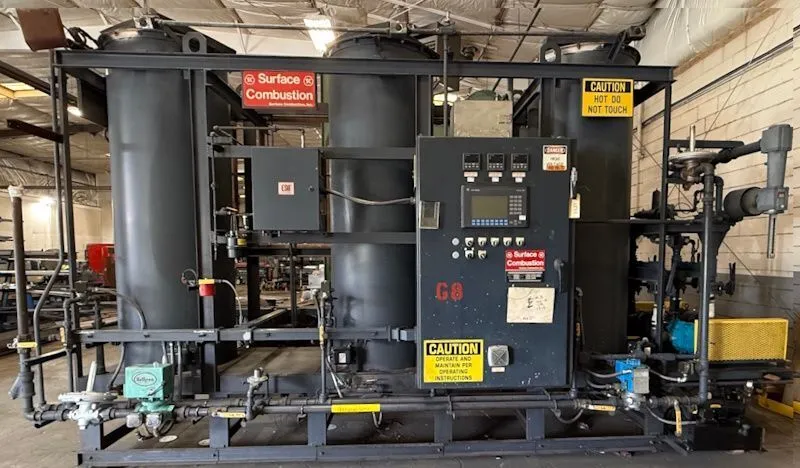

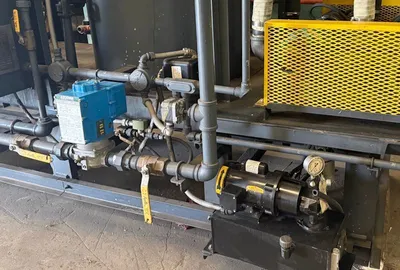

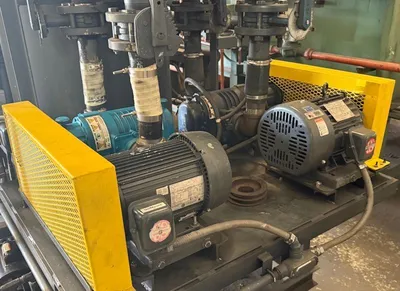

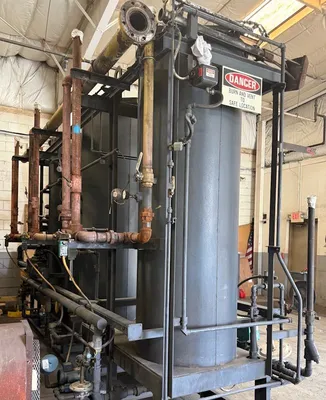

V-1251 Surface Combustion Endothermic Generator (3T, 6000 CFH, gas)

Manufacturer: Surface Combustion
Type: Endothermic Gas Generator

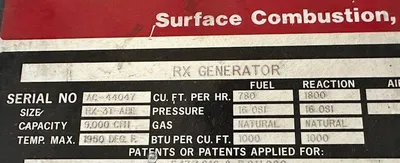

Serial Number: AC-44047
Capacity: 6,000 CFH (3 retorts)
Fuel: Nat. Gas 520 CF per hour, 1000 BTU/CF
Power: 480 Volts, 3-Phase, 60 Hz
Temp. Range: 300°F to 1400°F

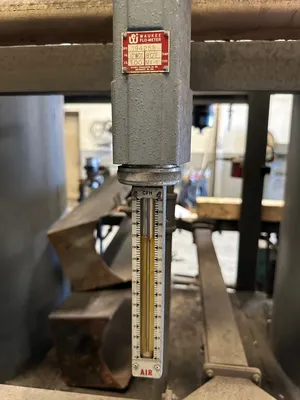

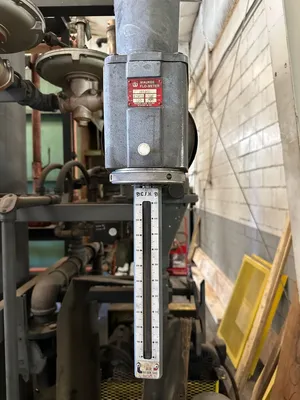

Flow Meters: Waukee (exothermic & nitrogen)

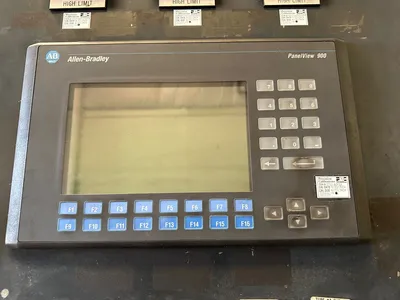

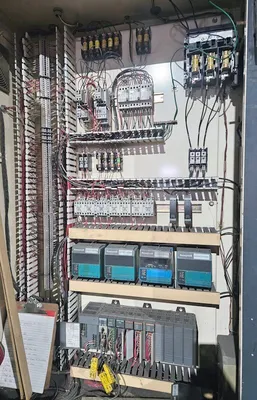

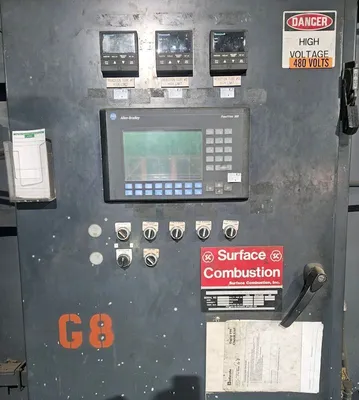

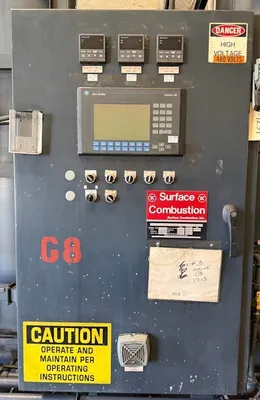

Controls:

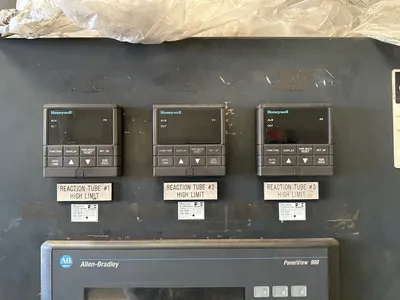

Honeywell digital over-temp controller
Honeywell strip chart recorder

General:
Atmosphere capable
Fiber-lined furnace chamber
Gas-fired vertical hanging tubes & fans
Vertical lift powered door
Rack & pinion powered car; refractory base

Note: Furnace chamber raises & lowers on crushed fiber seal with two (2) rear mounted pivot cylinders
