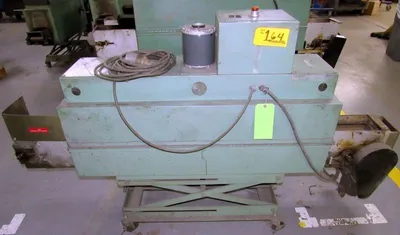

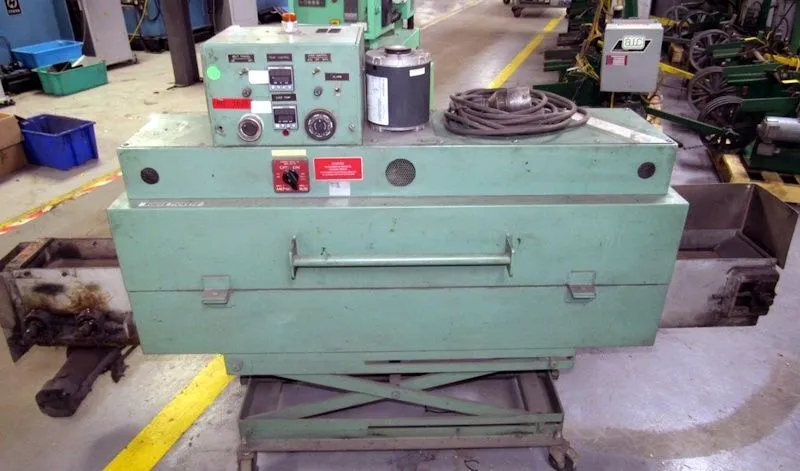

V-1257-HT JN Machinery Continuous Temper Furnace (6”W x 48”D x 2.5"H, 930ºF, elect)

Manufacturer: JN Machinery Corp.
Type: Electric Conveyor Belt Furnace on Scissors Lift

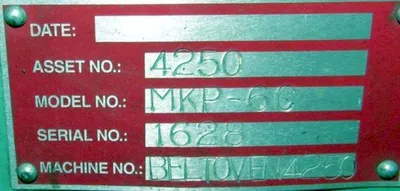

Serial No./Model: 1628 / MKP-6
Working Dim’s: 6” wide x 48” long (heated) x 2.5” high
Overall Dim’s: 15” wide x 68” long x 16-40” high (adjustable)
Power: 120/240/480 V / 3-Phase / 60Hz
Max Temp: 930ºF
Heated: Electric, 7200 Watts, 9 Amps for 480V

Standard Options:

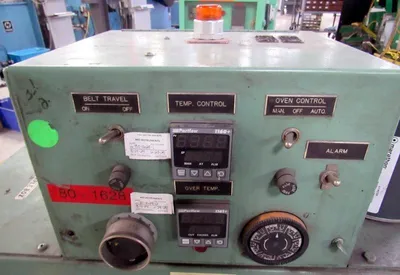

* Digital Controllers, Solid State Relays
* Chart Recorders, Custom Chutes
* SS Mesh Belt - Turned-Up & Flat Types
* SS Fan for Controlled Heat Processing
* Adjustable Work Height with Scissors Lift
* Process & Overtemperature Alarms
* Ceramic Fiber Insulation
* Incolloy Sheath Tubular Heating Elements
