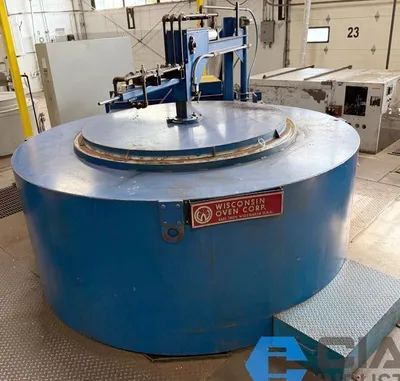

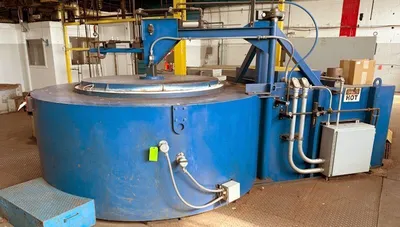

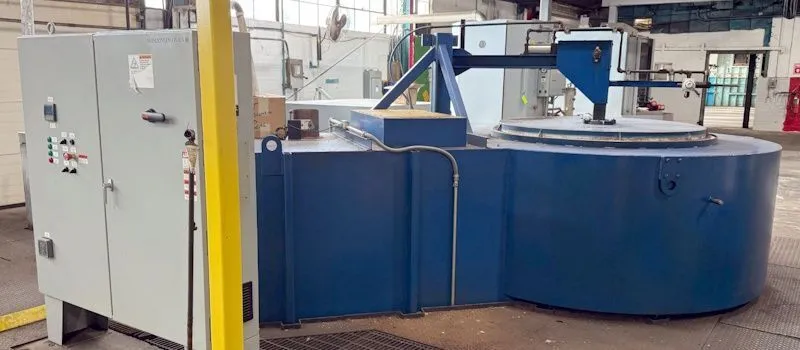

V-1265-PC Wisconsin Oven Pit Temper Furnace (60"Dia x 60”Depth, 1250ºF, elect)

Manufacture: Wisconsin Oven
Type: Electric Pit Temper Furnace

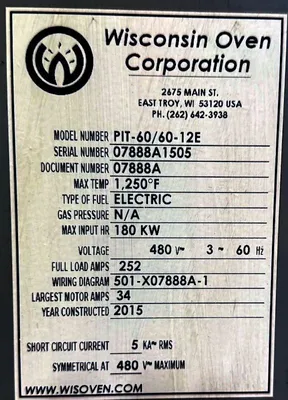

Serial / Model: 0788A / PIT-60/60-12E
Max Temp: 1250°F
Gross Load: 4000 pounds
Load Height: 60”
Heating: 480V / 3-Phase / 60 Hz, 252 Amps
Power: 180 KW

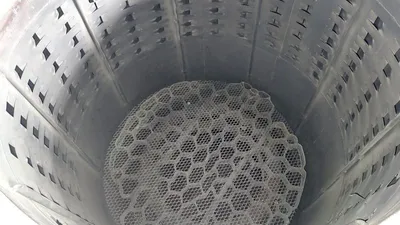

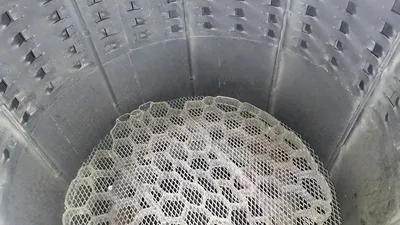

Working Dim’s: 60” ID x 60” deep
Overall Dim’s: 10’1” wide x 11’6” high x 13’11” front to back
Recirculating Fan: Dekalb with scroll (model 220-245-100-CCW); 14,000 CFM @ 25 HP
Exhaust: 8” diameter modulating

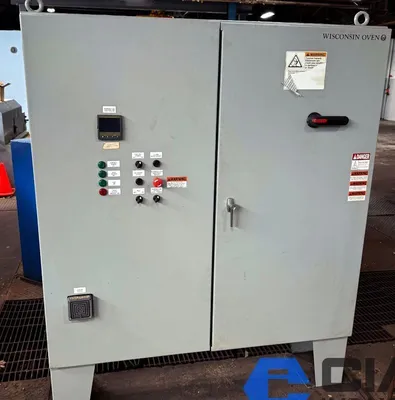

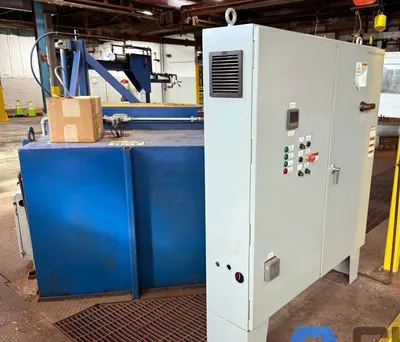

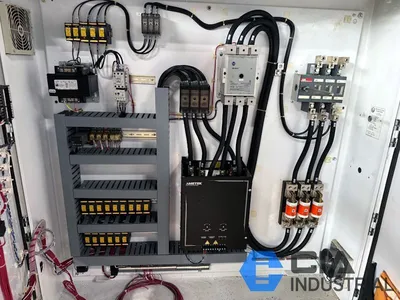

Electric Enclosure: Nema 12, double-door, 60”W x 12” D x 72”H

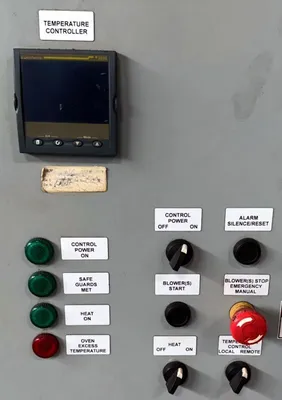

Controls:
Eurotherm Model 3204 temperature controller
Barber Coleman Model 7SL-91003 Hi-Limit
SCR Hallmar model 225A 480V
Main disconnect: AB 400 Amp
Type K thermocouples

General:
Pneumatic swing-out door (manually operated)
Shipping weight: 10,400 pounds
