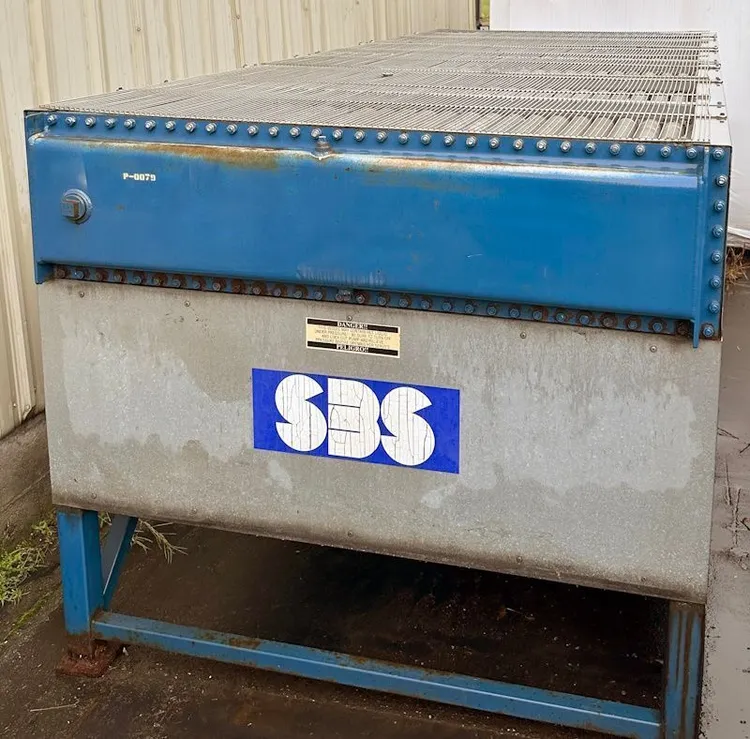

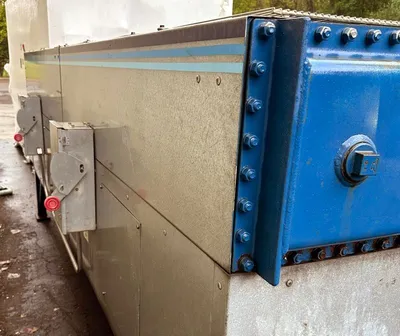

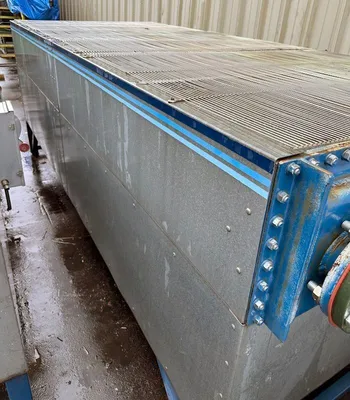

U-3888-CA Heat Exchanger - SBS Quench Air Model 5125

Manufacturer: SBS
Model: Quench Air 5125 (quench oil cooling)
Serial Number: 3878
Overall Dim’s:
Operation: Continuous loading 2000# per hour
Max Steel Temp: 1950°F
Heat Exchanged: 600,000 BTU/HR

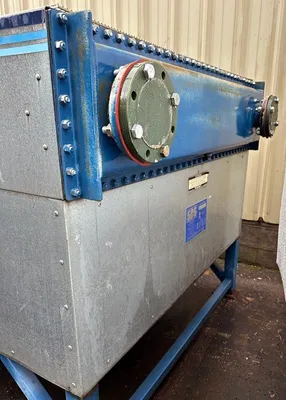

Headers:
Type/Material: Removable Cover / Carbon Steel
Inlet/Outlet: 4 Inch 150# ANSI R.F. Flange
Bolts: Grade 8 Fasteners
Design/Test Press: 75 PSI / 83 PSI
Design Temp: 450°F

Tubes:
Type: Straight Through (No U-Bends)
Material: SA-214 Carbon Steel
Size: 1 inch OD 16 BWG

Fins:
Type: Shoulder Tension Encasement
Material: Aluminum
No/Inch: 10

Fans:
Quantity: 2 - 42" diameter
Type: Direct Drive Propeller - Forced Draft

Motors:
Size: 5 HP 1140 RPM, 215T frame TEFC
Voltage: 230 - 460 / 3 / 60
