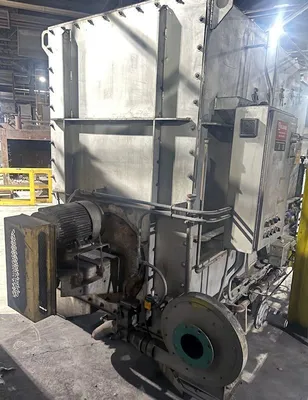

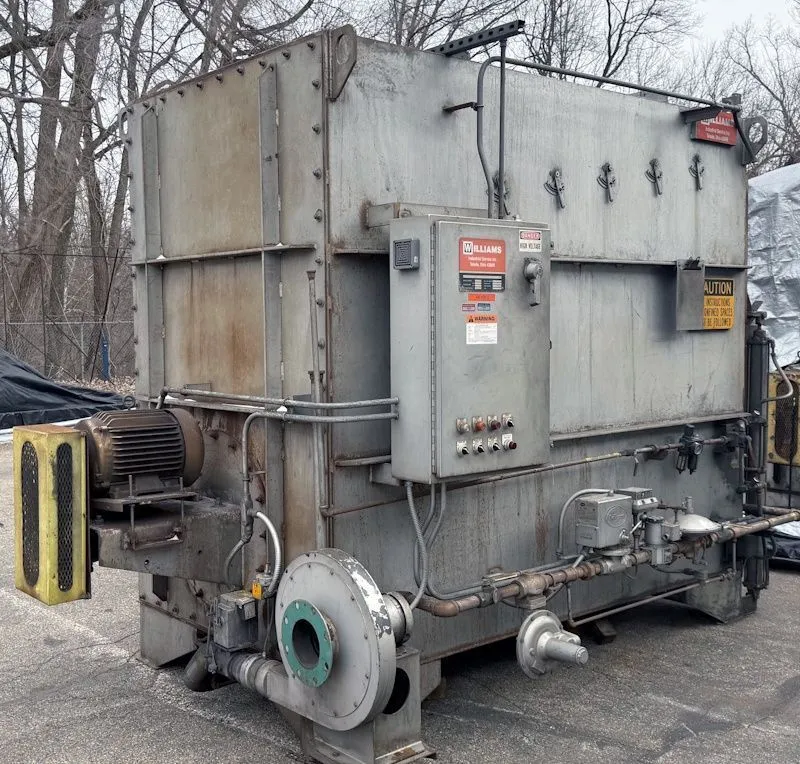

U-3893-CA Williams Temper Furnace (36"W x 72"D x 36"H, 1250°F, gas)

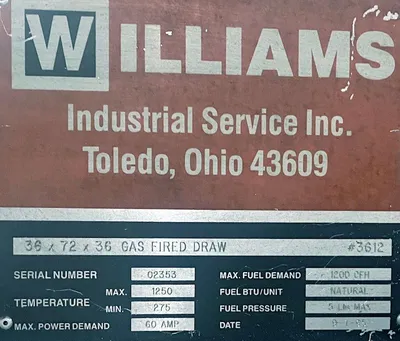

Manufacturer: Williams Industrial Service
Type: Gas-Fired Roller Rail Draw Furnace

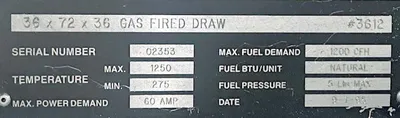

Serial Number: 02353
Working Dim’s: 36” wide x 72” deep x 36” high
Overall Dim’s: 82” wide x 153” deep x 93” high
Load Height: 49.5” from floor line
Max Temp: 1250°F

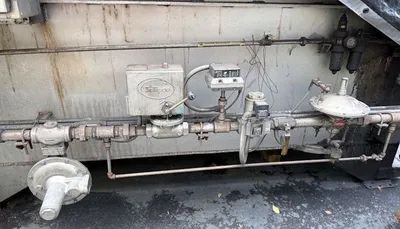

Heated: Eclipse TJ150 burner; 1,500,000 BTU input, 1200 CFH max

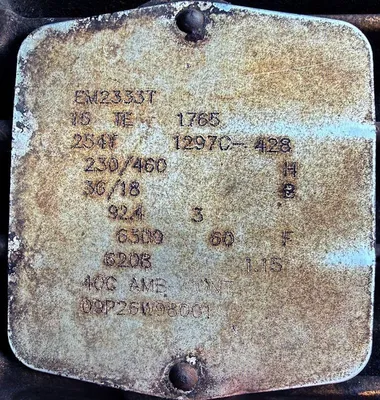

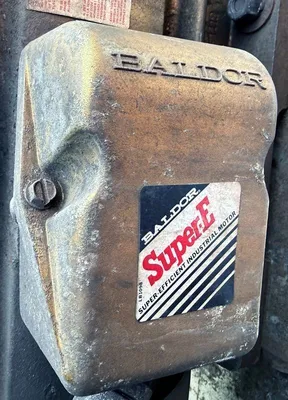

Recirculating Fan: Garden City 15RF2; 15 HP motor, 1800 RPM
Power: 460 Volts, 3-Phase, 60 HZ, 60 Amp

General:
SMJ 4616 combustion air blower fan

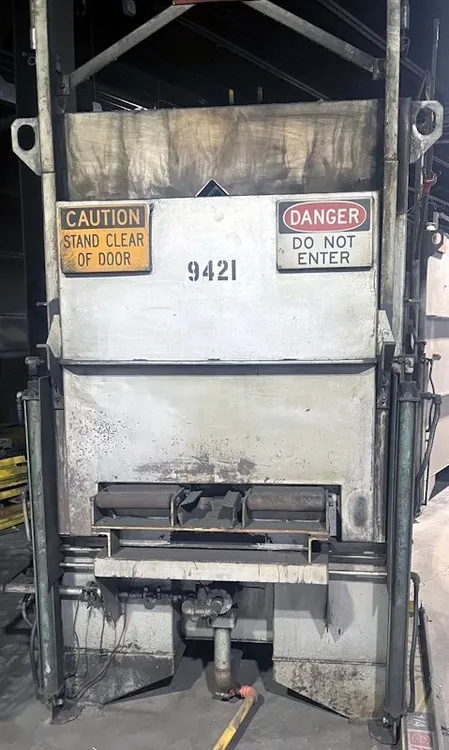

Nopak door cylinder, vertical rising pneumatic

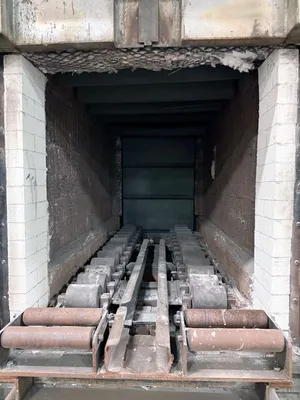

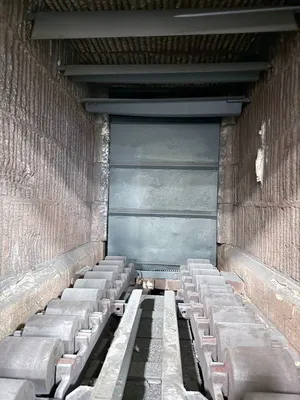

Roller rails 21” CC

Controls:

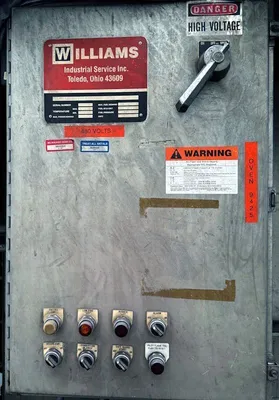

Control panel mounted on furnace
Honeywell Temperature Controller
Honeywell Over-Temp Controller
