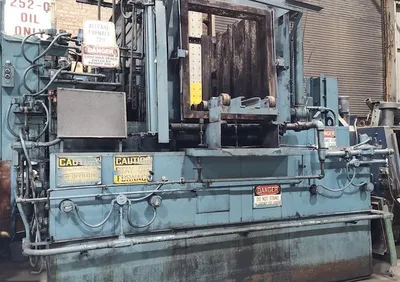

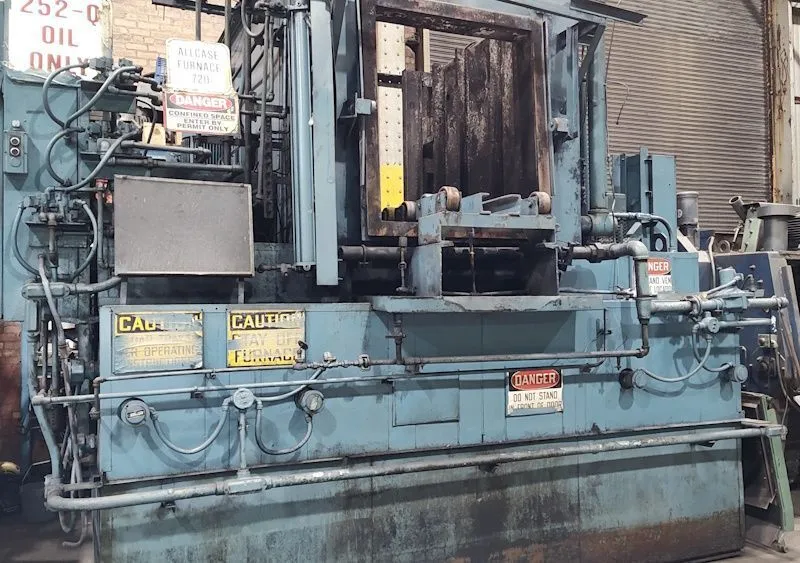

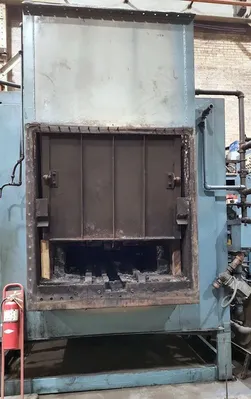

V-1278-HT Surface Combustion IQ Furnace w/Top Cool (36"W x 72"D x 36"H, 1800ºF, gas)

Manufacture: Surface Combustion
Type: IQ Furnace with top cool
Top cools have two (2) 12” pneumatic air cylinders
Serial Number: BC-42576-2
Working Dim’s: 36” wide x 72” deep x 36” high
Heating: Natural Gas

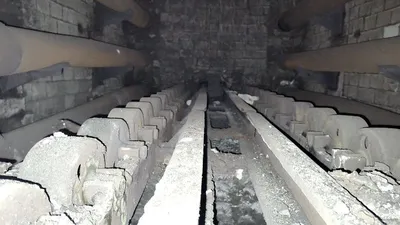

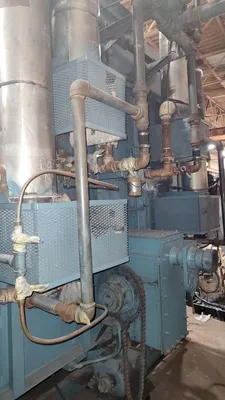

Burners: Standard tube design (updated recuperative burner system)
Fuel Pressure: 2-10 PSI
Voltage: 480V, 3-Phase, 60 Hz
Max Temp: 1850°F

Flow Meters: Waukee:
Air (100 CFH),
Natural Gas (120 CFH),
Ammonia (100 CFH),
Nitrogen for purge (500 CFH)
Nitrogen for process (500 CFH)
Top Cool: Endo gas at 1500 CFH
Furnace: Endo gas at 1000 CFH

Quench Tank: 5000-gallon capacity

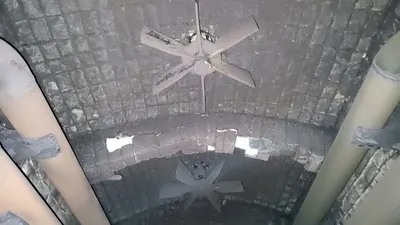

Fans: 10,000 SCFM total (2 fans-5 HP)

Controls:

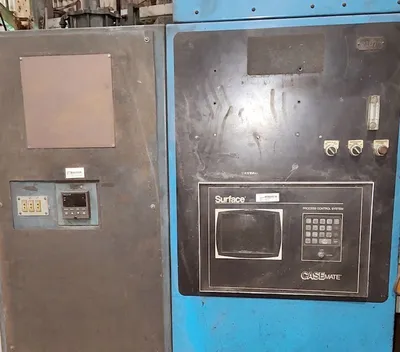

Surface Casemate process controls
Honeywell digital instruments

General:
Casemate Carbon Control
Quench Oil Agitators 4- 7.5 HP Motor
Combustion Air Blower 5 HP
Oil Heaters
System 1 rear handler
