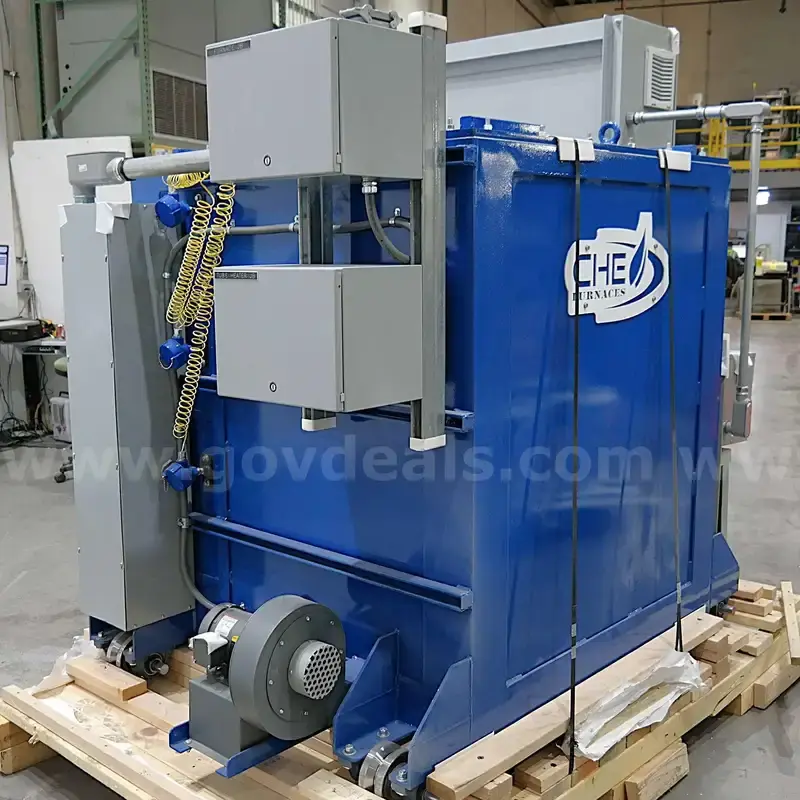

V-1282-CA Furnace - Titanium High-Heat Salt Bath
Have one to sell?
1 available
$49,995.00 USD
Manufacturer: CHE Furnaces
Type: Top Load Titanium High-Heat Salt Bath Furnace
Serial Number: ERM2133 built in 2024 (never in service)
Working Dim’s: 40” square x 58” tall internally
Max Temp: 1900°F - 2000°F (1850°F continuous operating)
Capacity: 1500 KG
Uniformity: +/-5 °F to +/-10°F across the working zone
Blower: High-pressure radial blower (9-inch cast AL wheel)
Motor: 3/4 HP, 3500 rpm, TEFC enclosure
Enclosure: Type 12 rating welded 16-gauge steel
Performance: Engineered for extreme temperature uniformity
Certifications: AMS2750, Nadcap, CQI-9, EPA, and OSHA
General: Designed for prep & solution heat treat of titanium components via immersion in molten salt
Heating: All Electric Rack Mounted Nickel Chrome Heating Elements with 120kW of input to heat the furnace. Elements are SCR fired for temperature control and include a high temperature contactor for over temperature protection. Full load amperage are estimated at 165 amps / 480 VAC / 3 Phase. There is a 200 Amp Disconnect on Panel for main power source.
Insulation: 6" thick ceramic fiber blanket, edge stacked and compressed to 10#/CF. Hot face rigidized to prevent wind erosion.
Temperature Controls: Standard instrumentation includes a Eurotherm Nanodac recorder / controller and high limit controller. Instruments are mounted and wired in a floor standing enclosure mounted on the furnace. Two certified type K thermocouple assemblies are included with the furnace. Nanodac will record up to 20 points. One recorder channel is used to record the furnace temperature in addition to the 20-point on the Nanodac. The controller can be ethernet connected to a PC and send all encrypted data to the PC for storage and or printing. Temperature control has 3 zones of control. The controller will turn off individual zones as designed for proper control.
Control Panel:
NEMA 12, floor standing control panel is included with the following controls:
• 200 amp main fused disconnect with door interlock
• SCR to Fire Elements with fusing
• Control transformer with fusing
• Push buttons for elements
• Easily connected via ethernet to clients PLC / or central control panel for amperage monitoring and control
Manufacturer: CHE Furnaces
Type: Top Load Titanium High-Heat Salt Bath Furnace
Serial Number: ERM2133 built in 2024 (never in service)
Working Dim’s: 40” square x 58” tall internally
Max Temp: 1900°F - 2000°F (1850°F continuous operating)
Capacity: 1500 KG
Uniformity: +/-5 °F to +/-10°F across the working zone
Blower: High-pressure radial blower (9-inch cast AL wheel)
Motor: 3/4 HP, 3500 rpm, TEFC enclosure
Enclosure: Type 12 rating welded 16-gauge steel
Performance: Engineered for extreme temperature uniformity
Certifications: AMS2750, Nadcap, CQI-9, EPA, and OSHA
General: Designed for prep & solution heat treat of titanium components via immersion in molten salt
Heating: All Electric Rack Mounted Nickel Chrome Heating Elements with 120kW of input to heat the furnace. Elements are SCR fired for temperature control and include a high temperature contactor for over temperature protection. Full load amperage are estimated at 165 amps / 480 VAC / 3 Phase. There is a 200 Amp Disconnect on Panel for main power source.
Insulation: 6" thick ceramic fiber blanket, edge stacked and compressed to 10#/CF. Hot face rigidized to prevent wind erosion.
Temperature Controls: Standard instrumentation includes a Eurotherm Nanodac recorder / controller and high limit controller. Instruments are mounted and wired in a floor standing enclosure mounted on the furnace. Two certified type K thermocouple assemblies are included with the furnace. Nanodac will record up to 20 points. One recorder channel is used to record the furnace temperature in addition to the 20-point on the Nanodac. The controller can be ethernet connected to a PC and send all encrypted data to the PC for storage and or printing. Temperature control has 3 zones of control. The controller will turn off individual zones as designed for proper control.
Control Panel:
NEMA 12, floor standing control panel is included with the following controls:
• 200 amp main fused disconnect with door interlock
• SCR to Fire Elements with fusing
• Control transformer with fusing
• Push buttons for elements
• Easily connected via ethernet to clients PLC / or central control panel for amperage monitoring and control
